    PICDev 28/40
28/40 Pin PICMicro Development Board

The PICDev 28/40 is a generic Prototype Development Board for a large list of 28 or 40-pin PICMicro Microcontrollers.

The board includes 5V and 3.3V Voltage Regulators and a jumper to select the operating voltage for the Microcontroller.

In addition the PICDev 28/40 includes an RJ-11 ICSP interface connector for MCU programming and debugging with development tools such as Microchip Tecnology ICD2, and a standard RS-232 serial interface.

The 3" x 3" prototype area has more than 800 connection points available with 0.1" spacing and easy access to power supply sources, MCU I/O ports, 3 user push buttons, 8 user LEDs (limiting resistors included), and SOIC-8/SOT-23 and SOIC-16 pads for SMD packages.

The board layout includes several alternative MCU clock configurations.

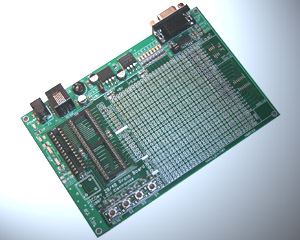

  [Click Image to Enlarge]
U$S 69.00/ea
  • IC Sockets for 28 or 40-pin Microchip PICMicro Microcontrollers
  • Multiple MCU Oscillator Configurations
  • 4x6" circuit board with prototype area
  • On board 5V and 3.3V voltage regulators
  • RS-232 Serial Interface
  • On board reset logic, user push button, status LEDs
  • ICSP Connector for MCU Programming and Debugging
  • Fully assembled and tested
  • List price : U$S 69.00
  • Actual shipping charges apply
  • Texas residents 8.125% Sales Tax applies
Technical Documentation & Software

PICDev 28/40 PICMicro Development Board Schematics

Useful Links

Useful software tools

Microchip's MPLAB Integrated Development Environment
Microchip's MPLAB C18 Compiler

Additional Resources

Microchip Users Forum
