Embedded TCP/IP Network Module

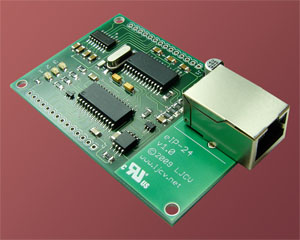

The eIP-24 is a small network module implemented with Microchip's PIC24HJ128GP202 16-bit Microcontroller and ENC28J60 Ethernet Network Controller.

The circuit board includes all required components for both controllers, a serial 16Mbit Serial Flash for storage of board configuration, HTML pages and graphic files, a 25AA02E48 Serial EEPROM with a pre-programmed Globally Unique, 48-bit Node, LEDs for health and board activity, and a RJ-45 jack for connection to an Ethernet Local Area Network.

The board ships fully assembled and tested, and pre-programmed with a demo application firmware based on Microchip's TCP/IP Stack.

  [Click Image to Enlarge]
U$S 62.00/ea - Currently OUT OF STOCK
  • 16-bit reprogrammable 80 MHz Microcontroller with Enhanced Flash Memory
  • On board 10Mbps Ethernet controller and RJ45 jack for network connection
  • Small 2" by 3" circuit board footprint
  • Single +3.3V DC supply
  • Supports latest Microchip's TCP/IP Protocol Stack (v5.25)
  • On board 16Mbit Serial Flash Memory
  • Globally Unique pre-programmed MAC Address
  • On board RS-232 Transceiver for UART interface
  • Fully assembled and tested
  • List price : U$S 62.00
  • Actual shipping charges apply
  • Texas residents 8.125% Sales Tax applies
